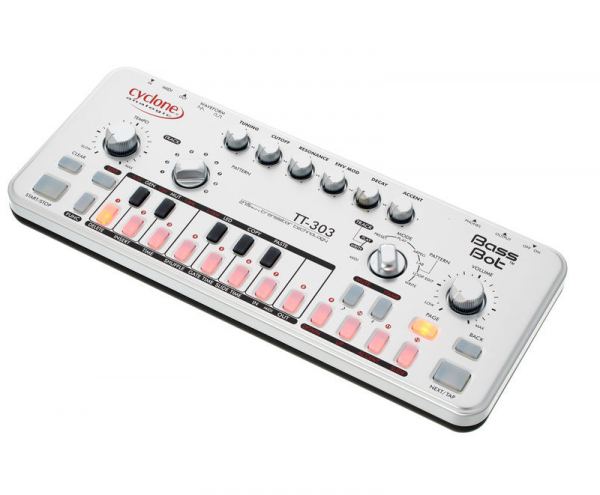

Cyclone analogic TT-303 Bass bot V2
This product is not available anymore
ABOUT THE PRODUCT
Expander CYCLONE ANALOGIC Tt-303 bass bot v2.
FEATURES
VCO
- Monophonic
- Waveforms: Sawtooth or Square
- Frequency Range: 20Hz-850Hz
Main Controls
- Tempo Knob
- Volume Knob
- Track/Pattern Bank Selector Knob
- Mode Selector Knob
- Power On/Off Switch
Audio Controls
- Tuning Knob
- Filter Cutoff Frequency Knob
- Filter Resonance Knob
- Filter Envelope Modulation Amount Knob
- Filter Envelope Decay Knob
- Accent Amount Knob
- Waveform Selector Switch
Data Storage
- User Patterns: 432 (9 banks of 48 patterns)
- Pattern Lab Patterns: 108 (9 banks of 12 patterns)
- Preset Patterns: 108 (9 banks of 12 patterns)
- User Tracks: 9
Operating Modes
- Pattern Write | Loop Edit |Pattern Lab | Arpeggiator
- Pattern Play | Preset | Track Play | Track Write | MIDI
Per-step Modifiers
- Down Octave | Up Octave | Accent | Slide
- Mute | Hammer | Rest / Tie
Pattern Features
- Pattern Length: 1-64 steps
- Per-step modifier assignment
- Time scales: 16th note, 32nd note, 8th note triplet,
- 16th note triplet
- Assignable pattern LED color
- Pattern Copy / Paste functions
- Intelligent procedural pattern generator
- Pattern-based Arpeggiator
- Pattern Mutate function
Track Features
- Visual track programming system
- Maximum Length: 144 bars | Per-bar transpose option
Global Features
- Shuffle Amount | Slide Time | Gate Length |
- Illuminated buttons: 26
- Tap Tempo Input | Automated VCO calibration |
- System LED color |
- MIDI In / Out channels
Outputs
- Main Mix (1/4" mono, +15dBu)
- Headphone (1/4" stereo, +10dBu)
- VCO Waveform (1/8”, Sawtooth: 5Vp-p, Square: 3.7Vp-p)
- Control Voltage (1/8”, 1V/octave, range 1V 5V)
- Gate (1/8”, 0V 12V)
- Accent On (1/8”, 0V 5.5V)
- Clock (1/8”, DIN Sync compatible, 0V 5V)
- Start/Stop (1/8”, DIN Sync compatible, 0V 5V)
- MIDI Out / Thru
Inputs
- Filter In (+4dBu nominal, 100kΩ input impedance)
- Power (9VDC, 300mA) | MIDI In
PC Functions
- Cyclone Studio application for PC & Mac enables Bass Bot software update and user data backup & restore using MIDI SysEx transfer.
Physical
- Dimensions: L310mm x W130mm x H35mm | Weight: Unit 783g (Boxed with accessories) 1.332kg
Included Accessories
- 100-240v Universal Power Adapter | Near Invisible Force Field | Case Transporter | Printed User Manual
Euroguitar Reference : 25510
