Spl P8
The SPL P8 is an all-analog 8-channel microphone preamplifier designed to deliver exceptional audio quality thanks to a discrete architecture with no integrated circuits (ICs). Each channel is equipped with discrete components, ensuring neutral, open, and transparent sound reproduction, ideal for capturing the slightest nuances of vocal and instrumental performances.
Each preamplifier features individual controls, including:
48V phantom power
-20 dB pad (PAD)
Phase inversion
80 Hz high-pass filter (6 dB/octave)
The SPL P8 is also available with an optional analog-to-digital converter (ADC) card, providing an 8-channel ADAT output for seamless digital integration with modern audio interfaces.
Adjustable gain: +8 dB to +62 dB
Maximum input level: 13.5 dBu (33.5 dBu with PAD enabled)
Input impedance: 10 kΩ
Output impedance: 75 Ω
Frequency range: 15 Hz – 200 kHz
Equivalent input noise (EIN): -124 dBu
Signal-to-noise ratio (A-weighted, 30 dB gain): -94 dBu
Signal-to-noise ratio (A-weighted, 62 dB gain): -66 dBu
Common mode rejection (CMRR, 1 kHz): < 78 dB
Total harmonic distortion + noise (THD+N, 1 kHz):
30 dB gain: 0.003%
62 dB gain: 0.022%

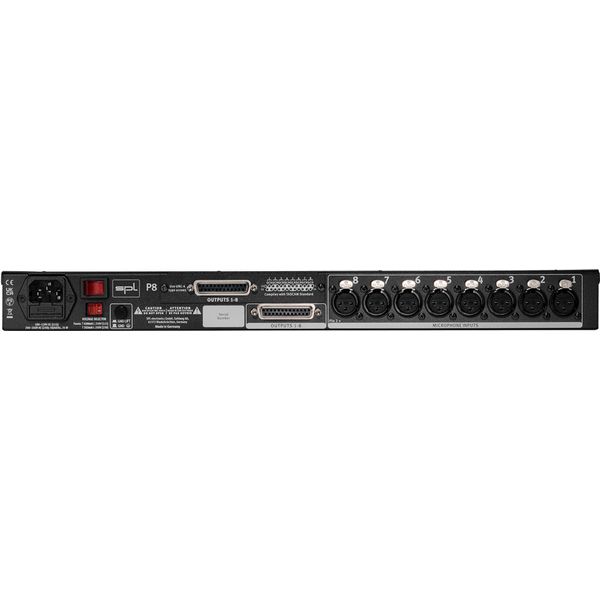

Connectivity:
Analog Inputs: 8 x balanced XLR (Neutrik, gold-plated contacts)
Analog Outputs: 2 x DB25 (8 channels each)
Digital Outputs (with optional ADC): 2 x ADAT optical (TOSLINK)
USB Port: 1 x Type B (for maintenance only)
Digital Clock: Word Clock Input/Output via BNC
Power Supply:
Supply Voltage: 100–120 V AC / 200–240 V AC, 50/60 Hz (selectable)
Power Consumption: Max. 27 VA
Fuses:
230 V: T 315 mA
115 V: T 630 mA
Construction & Dimensions
Chassis: High-quality steel, black powder-coated
Front: 4 mm thick black anodized aluminum
Dimensions (W x H x D): 482 x 44 x 237 mm (19" x 1.73" x 9.33")
Net Weight: 4.15 kg
Weight with packaging: 5.4 kg
