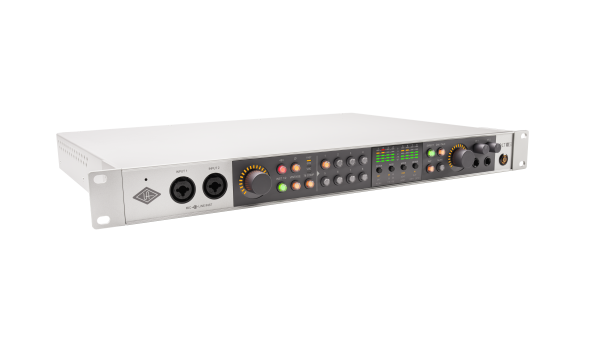

Universal audio Volt 876
Legendary analog sound for a whole band.
Volt 876 combines eight "Vintage" preamps inspired by the legendary UA 610 and eight 1176-style analog compressors, paired with next-generation 32-bit/192 kHz converters.
Designed by the team behind Apollo interfaces, it integrates with UAD Console (Assistive Auto-Gain, settings recall, two low-latency returns with talkback) and the LUNA sequencer (unlimited tracks, Voice Control, Instrument Detection, Tempo Listen).
Its 24-input/28-output connectivity, expandable to 16x16 ADAT, allows you to record entire bands and expand by chaining up to three Volt 876s or combining it with Apollos.
Bundled with a premium UAD suite (Teletronix LA-2A, UA 1176, Pultec, PolyMAX Synth, Showtime '64, etc.), it works with Mac, Windows, iPad, and iPhone.
Highlights:
8 Vintage preamps (UA 610 emulation) for warm and present takes
8 1176-style 76 compressors with dedicated presets (vocals, guitar, synths, drums/Fast)
32-bit / 192 kHz converters for maximum dynamics and precise monitoring
UAD Console: Assistive Auto-Gain, full settings recall, 2 monitor mixes + talkback
LUNA: unlimited tracks, intelligent tools (Voice Control, Instrument Detection, Tempo Listen)
ADAT 16x16: total 24 In / 28 Out, chainable up to 3 units or integrated with Apollo
2 pro headphone amps, 48V per input, direct front-panel monitoring
UAD Suite included: LA-2A & 1176 compressors, Pultec EQ, PolyMAX Synth, Showtime ’64, etc.
Mac/Windows/iPad/iPhone compatibility (Windows via WDM driver in UA Connect)

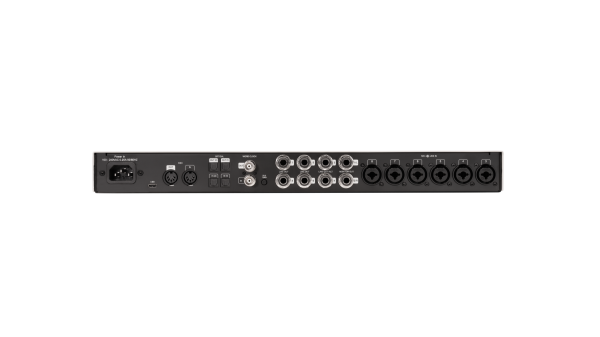

Total: 24 inputs / 28 outputs
Analog: 8 inputs + 8 outputs (8x8)
Digital: ADAT 16 In / 16 Out (expansion)
Headphones: 2 independent headphone outputs (pro amps)
Talkback: Built-in talkback microphone
Preamps & Analog Processing:
8 Vintage mic preamps (UA 610 tube circuit emulation)
8 76-channel compressors (UA 1176 style) with Vocal, Guitar, Synth, and Drum presets (Fast mode)
48V phantom power can be activated on each input
Conversion & Audio:
Converters: 32-bit / 192 kHz (latest generation)
Direct Monitoring: Front-panel control + 2 low-latency monitors via UAD Console
Software Integration:
UAD Console: Assistive Auto-Gain, full settings recall (front panel & monitors), talkback
LUNA (UA DAW): unlimited track recording, Voice Control, Instrument Detection, Tempo Listen
UAD Suite included: Teletronix LA-2A, UA 1176, Pultec EQs, PolyMAX Synth, Showtime ’64 Guitar Amp
Expansion & Modes:
ADAT 16x16 for 24 In / 28 Out total
Daisy Chaining: up to 3x Volt 876; Integration with Apollo and third-party interfaces via ADAT
Independent ADAT mode: Use as an 8-I/O preamp/converter to another interface
Compatibility & Drivers:
Mac: Native support
Windows: Requires WDM driver via the UA Connect app
iPad / iPhone: Direct recording supported*
* iPad with USB-C or Lightning-to-USB adapter required, as well as an external power supply for the Volt 876.

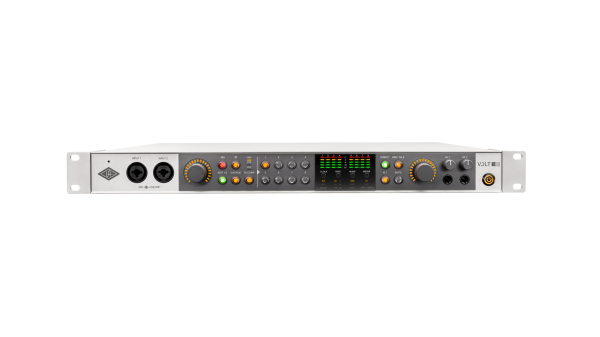

Design:
Sturdy and stylish chassis
Ears and pads included for desktop or 1U rack installation
Euroguitar Reference : 118455
